V-LIFE Insulation Resistance Recovery.

Designed to recover the electrical integrity of failing subsea circuits.

Recover the electrical integrity of subsea circuits.

V-LIFE is a preventative and active ‘healing’ solution for low insulation resistance caused by water ingress.

The most common cause of subsea electrical failures is the ingress of water into the cable insulation, which decreases the IR and may produce short circuits or leakage to earth. These faults often lead to loss of power and/or communications to subsea equipment and have the potential to halt production from subsea wells.

It has also been demonstrated that prolonged operation of subsea power circuits with particularly low Insulation Resistance can lead to the loss of copper from the conductor at the fault site which in turn can lead to the complete loss of operability of the system. Before V-LIFE became available expensive subsea fault-finding interventions and the replacement of cables, equipment and umbilicals were the only solutions to this problem.

Read More

0+
Installations
Across 0
Global Operators
Since 0
Proven in Field Operation

The V-LIFE effect is achieved by the application of a low voltage passivation signal to the faulty line which through an electro-kinetic and electrochemical process generates and sustains a solid precipitate at, and only at, the location or locations in the subsea circuit where seawater has ingressed. The precipitate produced is electrically insulating and its propagation at the source of the fault results in an increase in the Insulation Resistance of the circuit often by more than 100x.

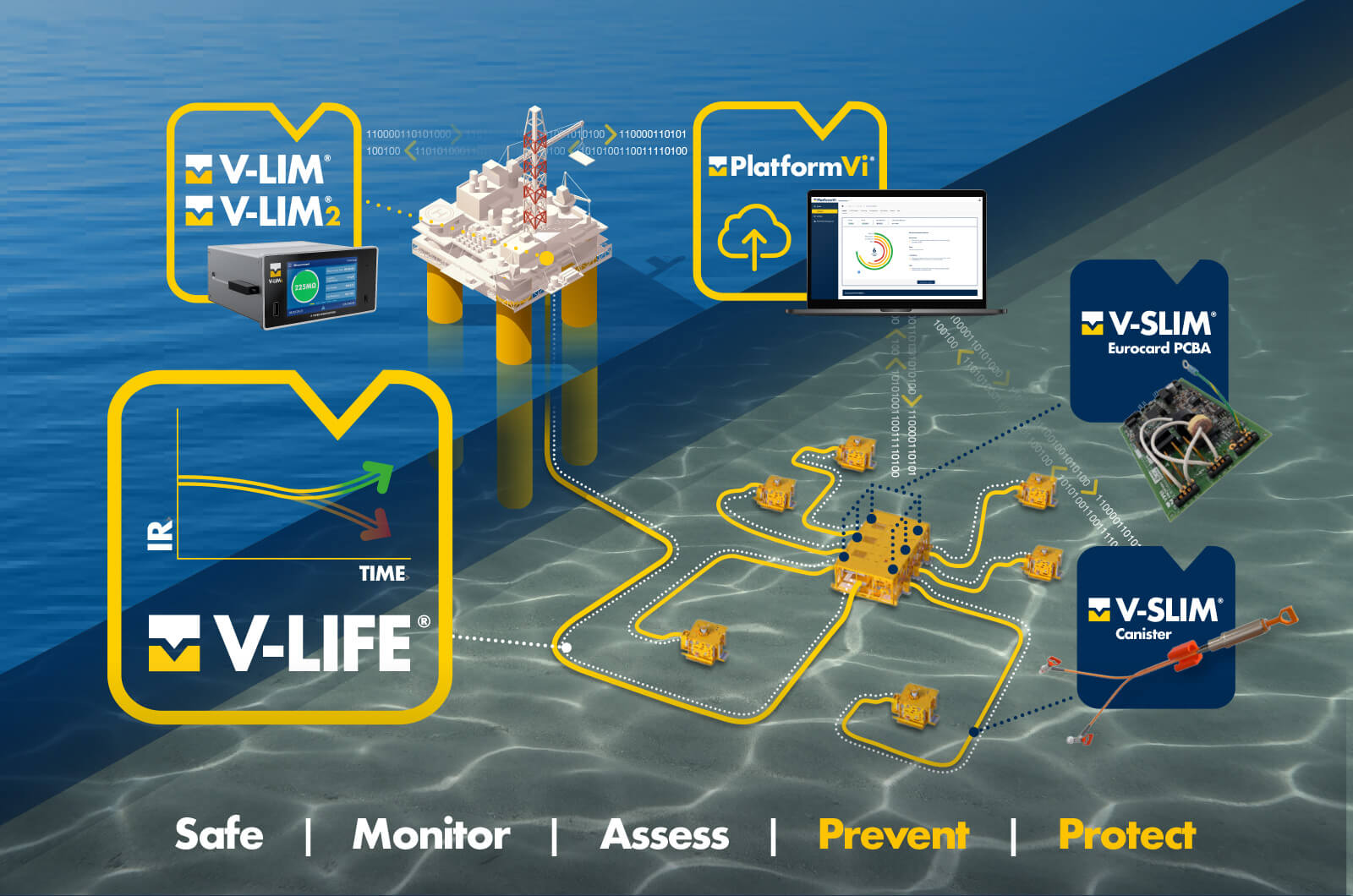

A V-LIFE application involves the installation of a V-LIM line insulation monitor (the hardware) and the enabling of its V-LIFE passivation signal by the upload of a software config file. V-LIM and V-LIFE can typically be installed and commissioned within 2 to 3 shifts offshore. The installation work is all topside. No subsea intervention is required.

Additional support is provided as part of the V-LIFE service in the form of condition reports, trend analysis and engineering recommendations.

V-LIFE is currently implemented on control systems supplied by six different OEMs. Widely used by 25+ operators globally, V-LIFE is the leading alternative to subsea interventions.

Get In Touch View Our Electrical IR Guide

Product Features.

  • Compatible with comms on power systems
  • Provides all the features of a Line Insulation Monitor including IR measurements and configurable alarms/trips
  • Compatible with power and/or signal lines
  • A range of installation options to suit all field applications
  • Displays IR measurements graphically in real time
  • Compatible with single or three phase systems
  • Graphical touch screen LCD
  • Advanced control and configuration via USB and Ethernet interfaces
  • Typically recovers IR from kΩ to MΩ within a few days
  • Increases IR without subsea intervention
  • Recovers multiple IR failures throughout the system
  • Extends the life of failing umbilicals and electrical distribution equipment
  • ‘Buys time’ whilst a new umbilical is procured
  • Used as an alternative to installing new, costly and long-lead time umbilicals
  • Used to delay early field abandonment
  • V-LIFE “finds” the points of water ingress, no diagnostics required.
  • Electro-Hydraulic Subsea Production Control Systems
  • Winner of the Queen’s Award for Enterprise 2016
  • Winner of the Technology Innovation of the Year category at the National Private Business Awards 2014
  • Winner of the Subsea UK 2014 Innovation Award.
  • A range of standard interface panels and cable harnesses are available for retrofit V-LIM applications in all major SPCS vendor Electrical Power Unit (EPU) cabinets.
  • A portable peli-case solution is available for temporary V-LIM installations outside the EPD cabinet if required.
  • Please complete the V-LIFE product questionnaire under the resources tab and email to sales@viperinnovations.com to allow us to provide a tailored quotation to match your specific project requirements
